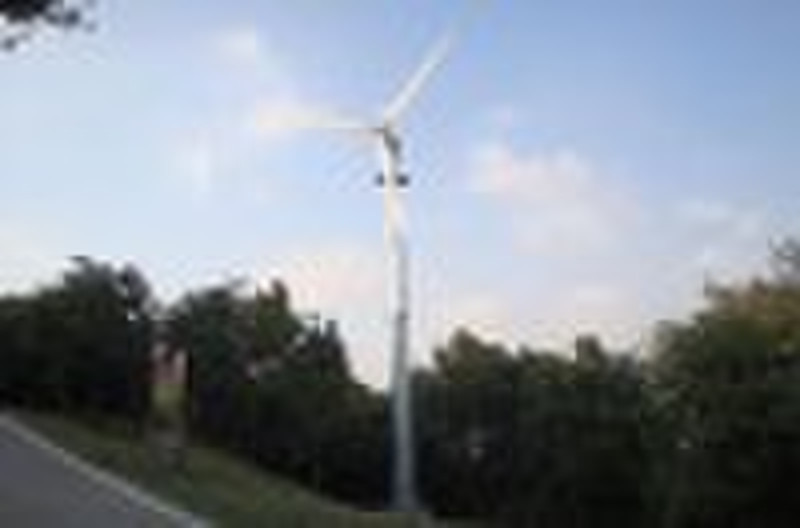

HY-10kW wind turbine generator
Rowena Ping
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | Huaying |
| Model Number | HY-10kW |
Technical parameters: 1. Rated power: 10kW 2. Maximum power: 12.5kW 3. Rated wind speed: 11m/s 4. Start up wind speed: 3m/s 5. Working wind speed: 4-25m/s 6. Survived wind speed: 50m/s 7. Rated rotate speed: 200r/min 8. Rotor diameter: 7.2m 9. Working voltage: DC300V/AC220V 10. Blades material*number: Fiberglass-reinforced plastics*3 11. Speed regulation: Passive pitch 12. Generator style: 3-phase AC PM 13. Tower height: 10m 14. Stop method: Positive pitch 15. Wind turbine body weight: 500kg 16. Guyed tower weight: 500kg 17. Freestanding tower weight: 900kg 18. Annual generation min/max: 10000/30000kwh
Delivery terms and packaging
Port: Shanghai
Payment term
Letter of credit
Telegraphic transfer
-
